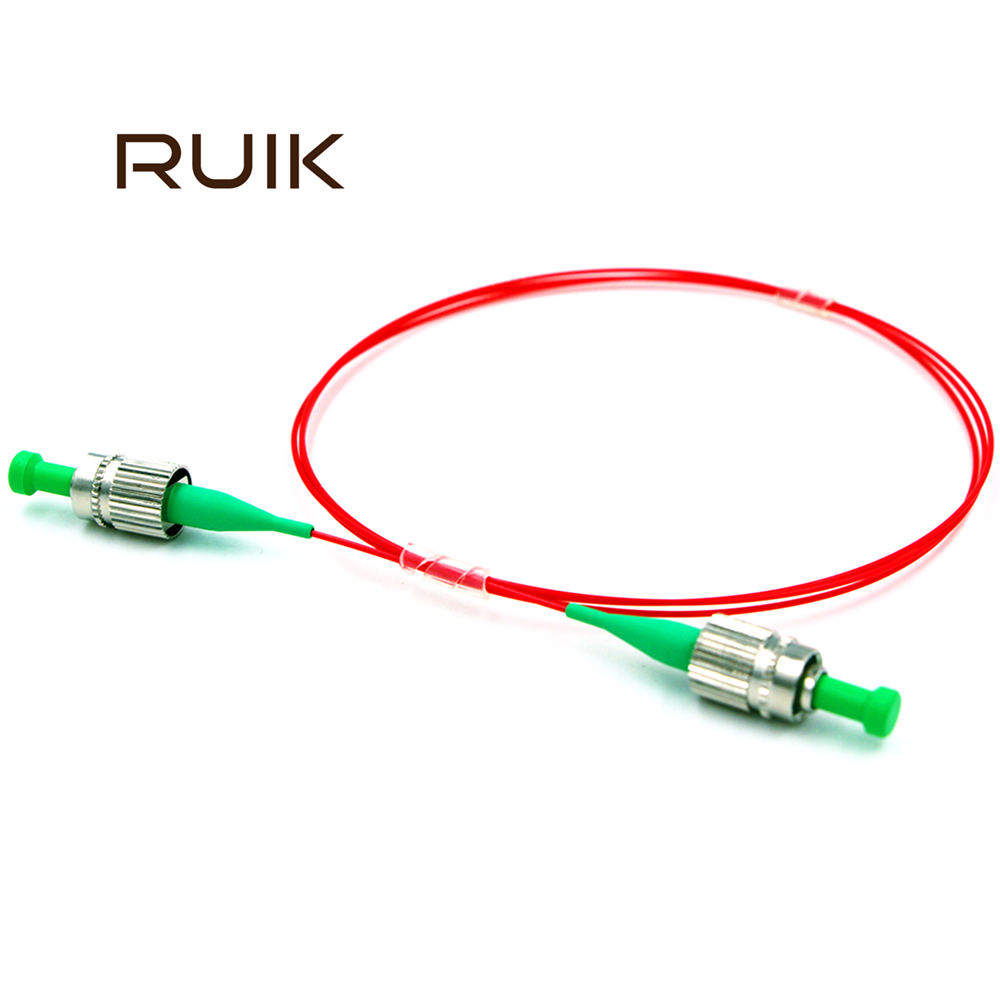

Features

Applications

         Low Insertion Loss

         Optical Fiber Amplifiers

         High Return Loss

         Test Instrument

         High Extinction Ratio

         Fiber Sensor

         High Reliability

         Research

         High Stability

         Fiber Laser

Specifications

Parameter

Unit

Value

Connector Type

-

FC/UPC, SC/UPC,LC/UPC,MU/UPC

FC/APC, SC/APC,LC/APC

Center Wavelength

nm

1950, 2000, 2050

Max. Insertion Loss

nm

0.5

Min. Extinction Ratio at 23℃

dB

23

Min. Return loss

UPC Type

dB

50

APC Type

dB

60

Fiber Type

-

PM Panda fiber

Key Orientation

-

Slow Axis

Axis Alignment

deg

±3

Operating Temperature

℃

-20~+70

Storage Temperature

℃

-40~+85

The default connector key is aligned to slow axis.

    PMJP-1111-2-333-456-77

1111

-Center Wavelength:

1950=1950nm, 2000=2000nm, 2050=2050nm......

2

-Key Orientation:

S=Slow axis, F=Fast axis

333

-Fiber Type:

001=PM1550, 008=SMF-28E, 045=Nufern PM1950, 046=Nufern SM1950

4

-Connector for Input:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None

5

-Connector for Output:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None

6

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube

77

-Fiber Length:

00=0.8m, 01=1m, 20=20m
