PM Fiber Component
Name:1550nm PM PLC Splitter Module(2xN)
Views : 5571







Product Details

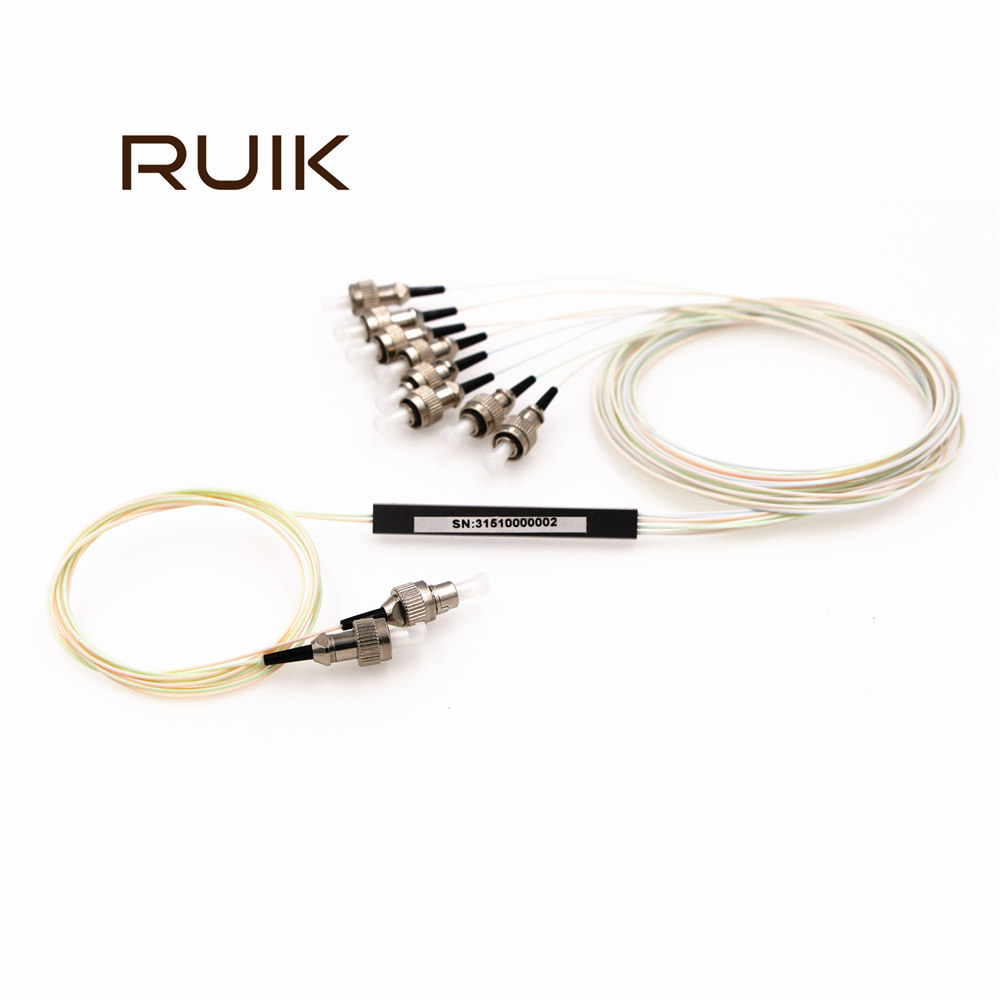

1550nm PM PLC Splitter Module(2xN)

Features

Applications

Low Insertion Loss

EDFA & Raman Amplifier

High Return Loss

Fiber Sensora

High Extinction Ratio

Fiber Optical Instrument

High Reliability

Power Monitoring System



High Stability

Specifications

Parameter

Unit

Value

Type

-

2x2

2x4

2x8

2x16

Center Wavelength

nm

1550 or 1310

Max. Insertion Loss

dB

4.2

7.6

11.0

14.4

Max.Wavelength Dependent Loss

dB

0.6

0.6

0.6

0.8

Uniformity

dB

0.9

1.1

1.2

1.5

Min. Extinction Ratio at 23℃

dB

18

Min. Return Loss

dB

50

Max. Insertion Temperature Stability(-40~85 ℃)

dB

0.5

Max. Optical Power(CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

-

PM1550 fiber or PM1310 fiber

Operating Temperature

-5~+70

Storage Temperature

-40~+85

Mini Package Dimensions

mm

40x4x4

40x4x4

40x4x4

50x7x4

Package Dimensions(ABS Box)

mm

100x80x10

100x80x10

100x80x10

120x18x10

For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

The default connector key is aligned to slow axis.

Ordering Information

    PMPLC-1111-2223-444-567-8

1111

-Center Wavelength:

1550=1550nm, 1310=1310nm

222

-Port Number:

202=2x2, 204=2x4,......, 208=2x8,........216=2x16

3

-Axis Alignment:

B=Both axis working, F=Slow axis working, Fast axis blocked(only for ABS box)

4

-Fiber Type:

001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E

5

-Package Dimension:

S=Mini size (only bare fiber & 900μm loose tube), L= ABS box

6

-Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube

7

-Fiber Length:

0=0.8m,1=1m

8

-Connector Type:

0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC
