PM Isolator
Name:1064nm PM Optical Isolator (Faraday Based, up to 2W)
Views : 3174







Product Details

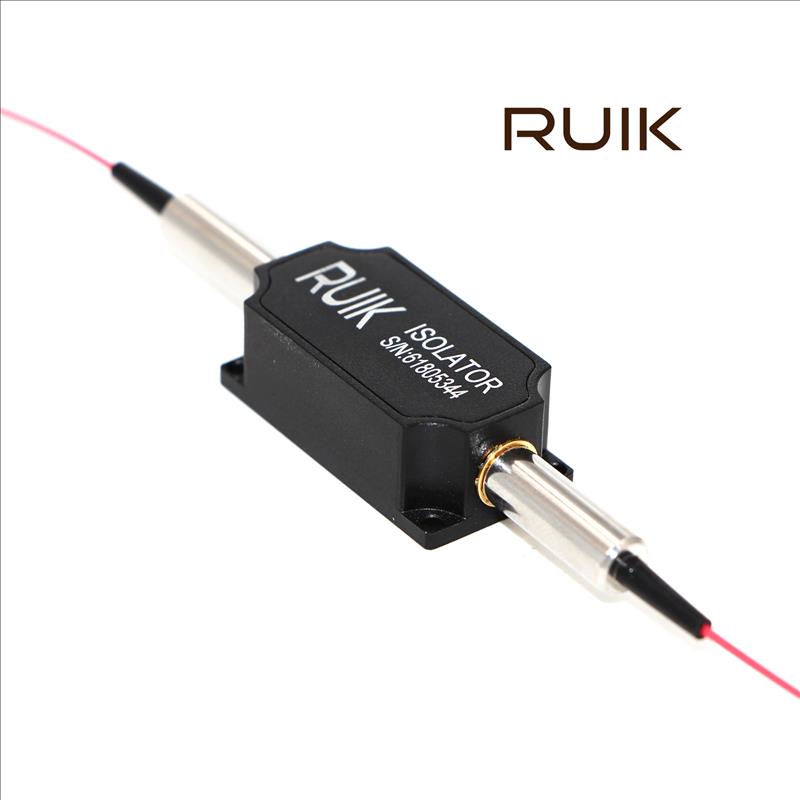

1064nm Optical Isolator (Faraday Based, 2W)

Features

Applications

Low Insertion Loss

Fiber Amplifier

High Return Loss

Testing Instrument

High Isolation

MOPA Fiber Laser

High Stability & Reliability

Fiber Laser

Specifications

Parameters

Unit

Value

Stage

-

Single

Dual

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Peak Isolation at 23℃

dB

35

50

Min. Isolation at 23℃

dB

28

45

Max. Insertion Loss at 23℃

dB

1.7

3.8

Max. Insertion Loss at 23℃ and Input Power 300 mW

dB

2.0

4.0

Max. Insertion Loss at 23℃ and Input Power 1 W

dB

2.5

4.5

Max. Insertion Loss at 23℃ and Input Power 2 W

dB

3.0

5.5

Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)

dB

0.2

Min. Extinction Ratio at 23℃ (PM Fiber Type)

dB

20

Min. Return Loss(Input /Output)

dB

5

Max. Average Optical Power

W

2

Max. Peak Power for ns Pulse

kW

10

Package Dimension

mm

33x17x11.5

60x17x11.5

Max. Tensile Load

N

5

Operating Temperature

+10 to +50

Storage Temperature

0 to +60



*Above specifications are for device without connector.

*For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.



Ordering Information

  PMIS-1111-23-444-56-7-88-99AA (PM Fiber Type)  /  PIIS-1111-23-444-56-7-88-99AA (SM Fiber Type)

1111 - Wavelength:

1064=1064nm

     2 - Core Type:

S=Single-core stage, D=Dual-core stage

     3 - Working Axis:

B=Both axis working, F=Fast axis blocked, N=Non PM

 444 - Fiber Type:

003=PM980, 004=Hi1060, 014=PM1060L, SSS=Specify

     5 - Package Dimension:

0=33x17x11.5mm, 1=60x17x11.5mm

     6 - Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

     7 - Fiber Length:

0.75=0.75m, 1.0=1m, S=Specify

   88 - Connector Type:

0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify

   99 - Average Power:

00=500mW, 01=1W, 02=2W

   AA - Peak Power:

00=Continuous Wave, 10=10kW, 20=20kW


Part No. Example: PMIS-SB-003-00-1.0-NN-0110
Description: 1064nm PM Isolator, Single stage, Both axis working, PM980 fiber, bare fiber, 1m, no connector, 33x17x11.5mm, 1W average power, 10W peak power.

For Custom Parts, please provide detailed description for your requirement.
