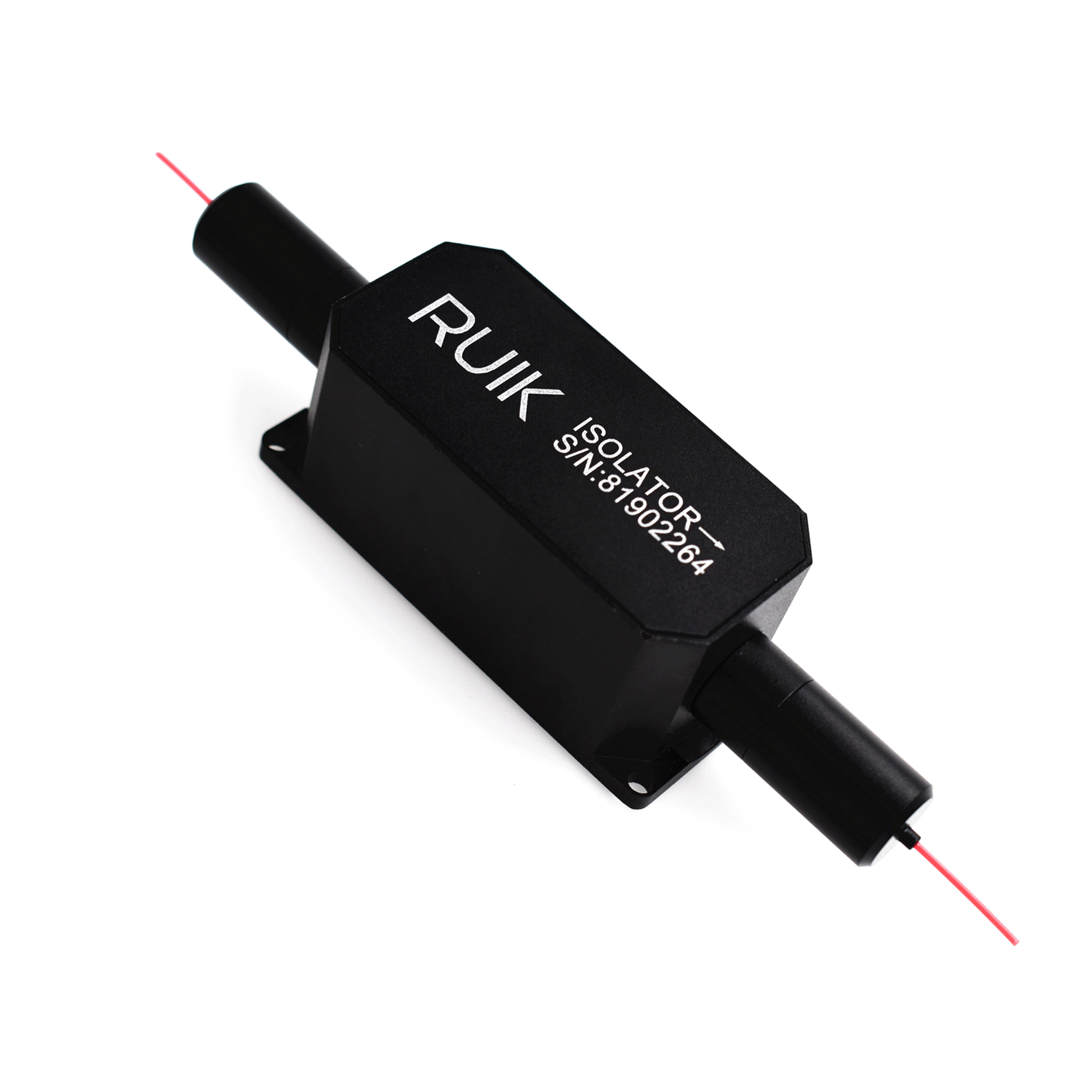

Features

Applications

Low Insertion Loss

Testing Instrument

High Return Loss

Raman Fiber Laser

High Isolation

Ultra-fast Fiber Laser

High stability & Reliability

Specifications

Parameters

Unit

Value

Center Wavelength

nm

450

Operating Wavelength Range

nm

±5

Min. Isolation at 23℃

dB

22

Typ. Insertion Loss at 23℃

dB

1.7

Max. Insertion Loss at 23℃

dB

2.0

Min. Extinction Ratio at 23℃

dB

18

Min. Return Loss at 23℃ (Input /Output)

dB

45

Max. Optical Power (CW)

mW

300

Max. Tensile Load

N

5

Package Dimension

mm

44x28x26

Operating Temperature

℃

+10~+50

Storage Temperature

℃

0~+60

*Above specifications are for device without connector.

*With connector, the handling power is 50mW, IL is 1.0dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

HPMIS-①①①-②-③③③-④⑤-⑥-⑦⑦-⑧⑧⑨⑨

①①①

- Center Wavelength:

 450=450nm, 532=532nm, SSS=Specified

②

- Working Axis:

 F=Fast axis blocked

③③③

- Fiber Type:

 105=PM460-HP, SSS=Specified

④

- Pigtail Type:

 0=250μm bare fiber, 1=900μm loose tube

⑤

- Package Dimensions:

 0=44x28x26mm

⑥

- Fiber Length:

 0.8=0.8m, 1.0=1m, S=Specified

⑦⑦

- Connector Type:

 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, 4=LC/UPC, 5=LC/APC, N=None

⑧⑧

- Average Power:

 00=100mW

⑨⑨

- Peak Power:

 00=Continuous Wave, SS=Specified
