PM Circulator
Name:3-port 532nm Fiber Circulator (PM or Non-PM)
Views : 1894







Product Details

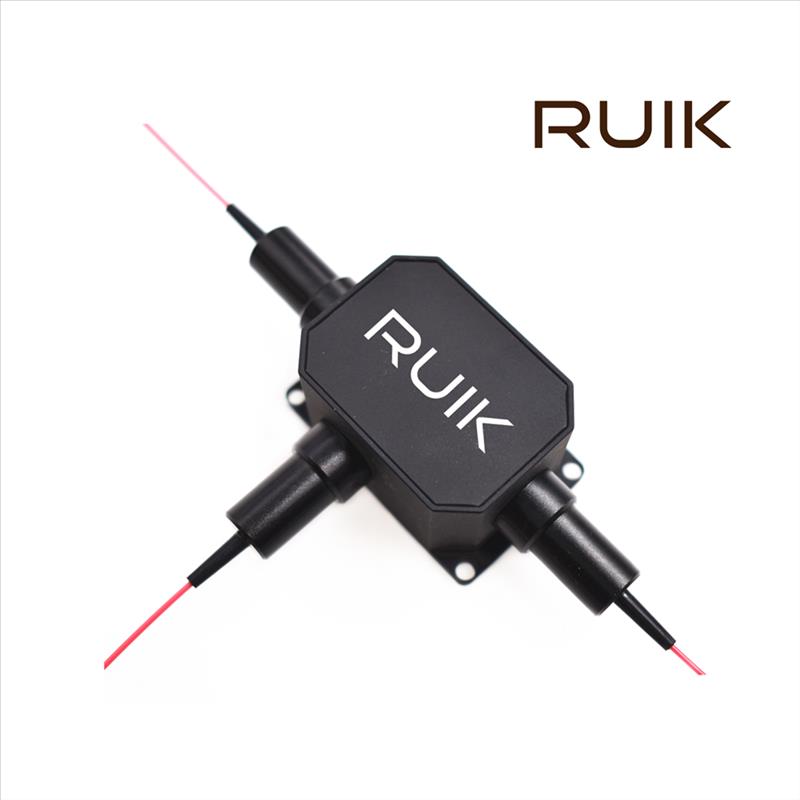

                    3-port 532nm Fiber Circulator (PM or Non-PM)

Features

Applications

         Low Insertion Loss

         Fiber Amplifier

         High Return Loss

         Testing Instrument

         High Isolation

         Fiber Sensor

         High Stability & Reliability

         Medical Equipment

Specifications

Parameter

Unit

Value

Port Type

-

3 Port

Center Wavelength

nm

532

Operating Wavelength Range

nm

±10

Typ. Peak Isolation

dB

22

Max. Isolation at 23℃

dB

20

Typ. Insertion Loss at 23℃

dB

1.5

Max. Insertion Loss at 23℃

dB

2.0

Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)

dB

0.15

Min. Extinction Ratio at 23℃ (PM Fiber Type)

dB

20

Min. Return Loss(Input/ Output)

dB

40

Min. Cross Talk

dB

40

Max. Average Optical Power

W

Total: 2 (Including Port 1 & Port 2)

Max. Peak Power for ns Pulse

kW

10

Max. Tensile Load

N

5

Package Dimension

mm

44x28x26

Operating Temperature

+10~+50

Storage Temperature

0~+60

*Above specifications are for device without connector.

*For device with connector, the handling power is only 1W, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

  PMCIR-111-2-333-45-6-7788 (PM Fiber Type)   /   PICIR-111-2-333-45-6-7788 (SM Fiber Type)

 111 - Wavelength:

532=532nm

   2 - Working Axis:

F=Fast axis blocked, B=Both axis working, N=Non-PM

 333 - Fiber Type:

105=PM460-HP fiber, 097=460-HP fiber, S=Specified

   4 - Package Dimension:

0=44x28x26mm, S=Specified

   5 - Pigtail Type:

0=250μm bare fiber, 1=900μm loose tube

   6 - Fiber Length:

0.8=0.8m, 1.0=1m

  77 - Handling Power:

00=500mW, 01=1W, 02=2W

  88 - Peak Power:

00=Continuous Wave, 01=1kW, 10=10kW

Part No. Example: HPMCIR-532-F-105-00-0.8-0101
Description: 532nm PM Circulator, Fast axis blocked, PM460-HP fiber, bare fiber, 0.8m, 44x28x26mm, 1W power handling, 1kW peak power.

For Custom Parts, please provide detailed description for your requirement.
